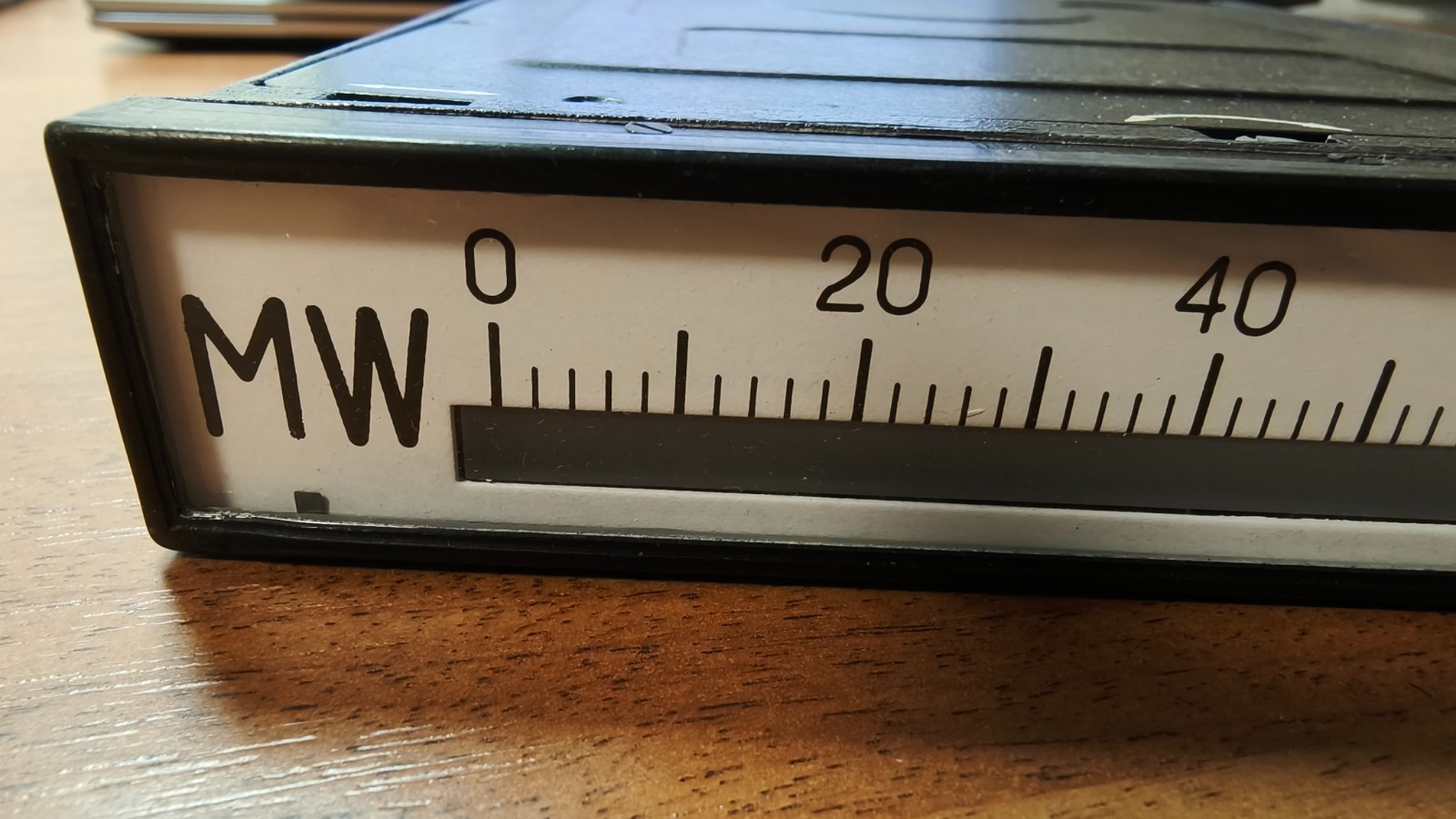

Control Panel AmmeterChernobyl NPP Control Panel RBMKVintage
MW scale
This is optoelectronic device with a light indicator. Non-electrical quantities that can typically be measured (with the appropriate standardized characteristics and connections) typically include the following categories:
Magnetic parameters:
Magnetic flux (μWb) via appropriate sensors/circuits
Inductance and magnetic flux within measuring heads
Magnetic polarization, magnetic permeability within calibration limits
Magnetic field voltage (H) and corresponding field-generating currents, depending on configuration
Mechanical and thermal quantities (via transducers and sensors within the system):
Force-induced mechanical position (via strain/load sensors)
Temperature (via temperature-sensitive elements, calibration coefficients)
Humidity, pressure, and other parameters within specialized modulesRadio and electromagnetic parameters:
Signal frequency and phase in AC/magnetic field circuits
Capacitance and inductance As part of bridge circuits
Energy parameters in measuring unitsNon-electrical parameters as part of complex measurements:
Acceleration and vibration characteristics (for modular configurations with appropriate sensors)
Light and laser parameters (with optical sensors and appropriate adapters)Length of the instrument scale - 120 mm;
Dimensions - 160x30x275 mm;
Measurement range: 0-5mA;
Weight - 1.2 kgMade in USSR
Youtube video:What is inside the AZ-5 SWITCH and other Chornobyl controls?
