Antenna Group OE-254/GRC (NSN: 5985-01-063-1574) 100% Complete
Military Surplus Antenna Kit w/ Poles, Cable, OD Green Nylon Roll Bag

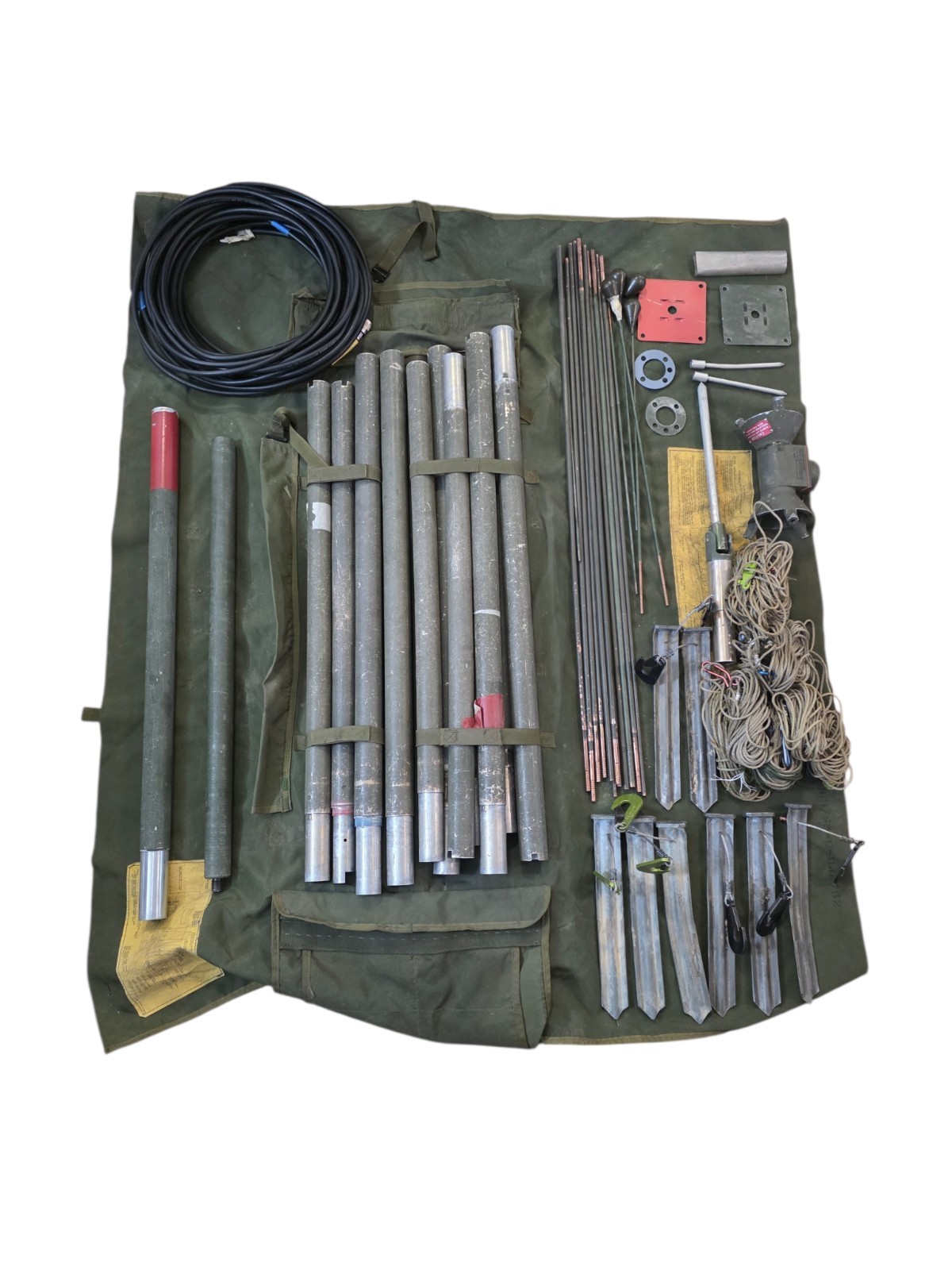

Everything included is pictured. Please review the pictures carefully to see what is included and not and any damage.
This is surplus, so it is used. There may be some wear and tear and small damage.
The antenna is untested by us.
The OE-254/GRC (NSN 5985-01-063-1574) is a rugged, lightweight, broadband omnidirectional antenna group used by the military for ground-based tactical communications. It supports a frequency range of 30 to 88 MHz (VHF) and can be mounted on a 27-foot collapsible mast or used with a ground tripod base.
Key Features and Specifications
Frequency Range: 30 MHz to 88 MHz (VHF/FM tactical band).
Height: Up to 27 feet (8.2 meters) utilizing interlocking mast sections.
Rating: Withstands up to 90 mph winds without ice, or 60 mph with 0.5 inches of radial ice.
Compatibility: Designed for legacy tactical radio sets like the AN/PRC-25, AN/PRC-77, AN/VRC-12 family, and SINCGARS (Single Channel Ground and Airborne Radio System) currently used by the US military.
Portability: Packs down completely into an integrated canvas transit/carry bag containing elements, guy ropes, and stakes.
PRODUCT SPECIFICATIONS
Application Ground Based Communications
Frequency 30-88 MHz
Impedance 50 Ohm Nominal
VSWR 3.0:1 Maximum
Polarization Vertical
Pattern Omni-Directional
Connector “N” Female
RF Power Handling 350 Watts Continuous
Gain -3 dBd
Max. Weight 57 lbs
Available Colors CARC Green and CARC Tan
This USGI antenna with masts, guy ropes, etc., was issued 100% serviceable but used. It has been opened for pictures and inventory by us. Never was erected nor used. TM 11-5985-357-13, which provides complete instructions for operator and organizational installation, operation, and maintenance. You can search for, access, and download the full document online for reference.
Will ship to CONUS (continental United States).
AK, HI, and US territories contact prior to purchase.
