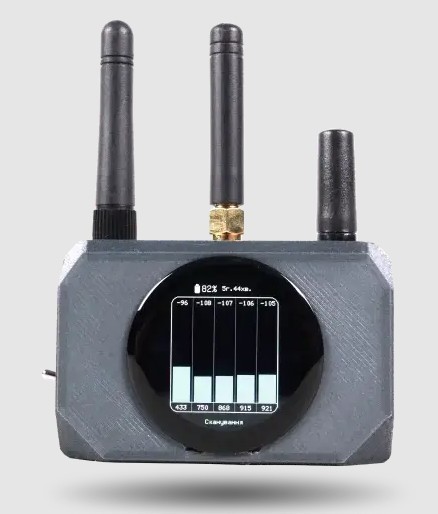

TENETA PRO – Professional RF Signal Detector & Spectrum Analyzer
Teneta PRO is an advanced compact RF signal detector and spectrum analyzer designed for early detection and monitoring of radio-frequency control and telemetry signals. The PRO version adds 2.4 GHz support and features an updated housing with improved dust and moisture protection.
The device uses a 1.28-inch IPS capacitive touchscreen, three external wideband antennas, and a built-in 1300 mAh Li-ion battery providing up to approximately 7.5 hours of autonomous operation.
Frequency Coverage
- 415 MHz
- 433 MHz
- 750 MHz
- 868 MHz
- 915 MHz
- 921 MHz
- 2.4 GHz
- Additional RSSI monitoring through the Teneta Android application:
- 400–580 MHz
- 720–1020 MHz
- 2.400–2.485 GHz (PRO)
Main Features
- Real-time RF signal detection
- RSSI signal level monitoring
- Visual, vibration and audible alerts
- 1.28\" IPS capacitive touchscreen
- 240 × 240 pixel display
- Three external antennas: 433 MHz, 915 MHz and 2.4 GHz
- Built-in 1300 mAh Li-ion battery
- Up to 7 hours 30 minutes of operation
- Can operate while charging
- USB Type-C charging
- Android connectivity via Type-C to Type-C cable
- Adjustable detection and scanning parameters
- OTA software updates
- Night display mode
- Sound and vibration can be enabled/disabled
Adjustable Settings
The device allows the user to configure:
- Sound alerts ON/OFF
- Vibration ON/OFF
- Screen timeout and lock
- Display brightness
- RSSI detection threshold
- Time spent on each frequency: 200 ms–1 sec
- Packet threshold: 1–5
- LoRa packet sound ON/OFF
- OTA software updates
- Night display mode
The default 400 ms per frequency setting provides a good balance between scanning speed and detection efficiency.
Technical Specifications
- Weight: 90 g with antennas / 80 g without antennas
- Housing dimensions without antennas and side switch: 71 × 24 × 48 mm
- With side switch: 80 × 24 × 48 mm
- With antennas and side switch: 80 × 24 × 97 mm
- Battery: Built-in Li-ion, 1300 mAh
- Operating time: up to 7 h 30 min
- Full charging time: approximately 1 h 30 min at 5V/1A
- Display: 1.28\" IPS capacitive touchscreen
- Resolution: 240 × 240 pixels
- Charging: USB Type-C
- Operation while charging: Yes
Android Application
Teneta PRO can be connected to an Android device using a Type-C to Type-C cable. The Teneta application provides detailed RSSI signal visualization and monitoring across supported frequency ranges.
Package Includes
- 1 × Teneta PRO device
- 3 × external antennas
- 1 × Type-C cable
Important: Actual detection range depends on transmitter power, antenna configuration, environment, interference and other RF conditions. The device is intended for RF signal detection and analysis; results may vary depending on operating conditions.
