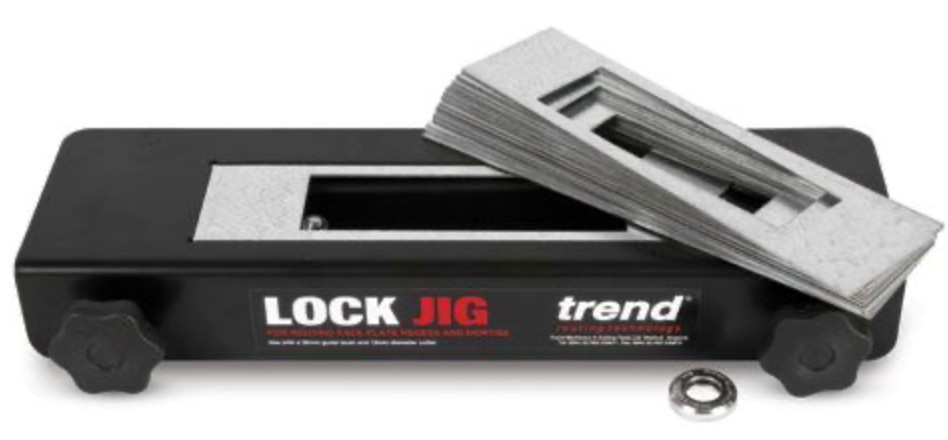

Trend LOCK/JIG/A LARGE Lock Jig comes with Baldwin Template For Sale

For routing the face-plate and mortise for larger locks quickly & accurately.

• Suitable for two sizes of Baldwin locks with faceplate sizes 1 1/4\" x 8\" or 1\" x 8\" and mortise sizes 1\" x 5 23/32\" or 7/8\" x 5 23/32\".
• Fast, clean & accurate results on doors 1 5/16 inch to 2 1/4 inch thick, even in hardwood.
• Adaptor plate included to allow smaller templates to be fitted (as supplied with standard LOCK/JIG).
• An auger bit and drill is required to complete deep mortises.
• Includes 15/32 inch diameter 1/2 inch shank TCT router bit and 1-3/16 inch screw-on style guide bush.
• Jig requires a router with 3-1/8 inch plunge.
